Factory wholesale Duckbill Check Valve - Cast Iron Double Door Check Valve – Hongbang Detail:

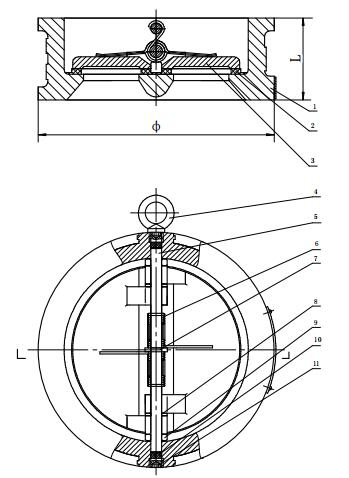

OK-501-CAST IRON

NO.	PART	Choose		QTY
1	BODY	CI/DI		1
2	SEAT	EPDM/NBR/VITON		1
3	DISC	DI+NP/CF8/CF8M/AL-B		2
4	EYE BOLT	SS304/SS316		1
5	SHAFT	SS304/SS316		2
6	SPRING	SS304/SS316		4
7	GASKET	F4		1
8	GASKET	F4		1
9	GASKET	F4		2
10	BUSH	F4		2
11	SCREW	SS304/SS316		4
TEST PRESSURE			SHELL	SEAL
		HYDROSTATIC	2.4 MPa	1.76 MPa
STANDARD	DESIGN CODE		API 609/EN 593
	INSPECTION & TEST		API 598/EN 12266
	END STANDARD		PN10/16 150LB 10K
	FACE TO FACE		API 609/EN 558

GENERAL CHARACTERISTICS

Design in accordance with standard API609/EN 16767.
Range: From DN 40 to DN 600.
Mounting between flanges.
Working positions: horizontal and vertical ascending, and vertical descending position < DN 150.
Mounting in accordance with many standards connections.
Low head loss.
Stainless steel spring technology to avoid fluid hammer.

STANDARDS
Manufacture according to the requirements of the European directive 2014/68/EU «Equipment under pressure»: category III modulate H.
Face to face according to standard API609/EN 558-1 serie 16.
Mounting with flanges PN10/PN16/150LB/10K from DN50 to DN600

	PN10/16		125LB
Size	L	φ C	L	φ C	φ C
2″/DN50					PN10/16 125LB 10K
2-1/2″/DN65					PN10/16 125LB 10K
3″/DN80					PN10/16 125LB 10K
4″/DN100					PN10/16 125LB 10K
5″/DN125					PN10/16 125LB 10K
6″/DN150					PN10/16 125LB 10K
8″/DN200					PN10/16 125LB 10K
