High Quality for China Manual Butterfly Valves - Lug Butterfly Vlave – Hongbang Detail:

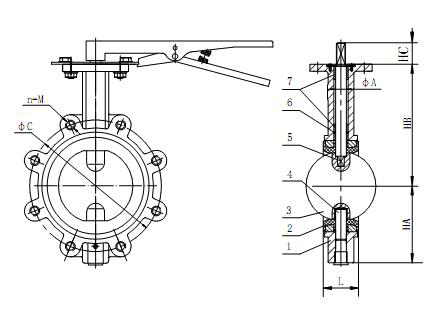

OK-801-HANDLE

NO.	PART	Choose		QTY
1	BODY	CI/DI		1
2	SEAT	EPDM/NBR/VITON/PTFE		1
3	DISC	DI+NP/CF8/CF8M/AL-B		1
4	STEM	416/431/304/316/17-4PH		2
5	BUSHING	PTFE/BRASS		5
6	O-RING	NBR		3
7	LEVER	CAST/ALUMINUM		1
TEST PRESSURE			SHELL	SEAL
		HYDROSTATIC	2.4 MPa	1.76 MPa
STANDARD	DESIGN CODE		API 609/EN 593
	INSPECTION & TEST		API 598/EN 12266
	END STANDARD		PN10/16 150LB 10K
	FACE TO FACE		API 609/EN 558

GENERAL CHARACTERISTICS

Design according with API 609/EN 593
Tightness in both ways. Lug type with threaded ears
Flexible sleeve adapted to the shape of the body assures low operating torque. High and low semi stem giving a high flow coefficient, machined disc on periphery giving a low and regular torque. Unejectable stem, mounting flange according to ISO 5211.

STANDARDS

Manufacture according to the requirements of the European
directive 2014/68/EU «Equipment under pressure»: modulate H. Face to face according to standards NF EN 558 serie 20, ISO 5752 série 20, DIN 3202.
Mounting with flanges PN10/PN16/150LB/10K from DN50 to DN600 from DN200 to DN300 according to API 609/EN 1092-2.
Pressure test according to standards API 609/EN 12266-1, DIN 3230, BS 6755 and ISO 5208

Size	H1	H2	L	HC	φ C
2″/DN50	66	130	43	32	PN10/16 150LB 10K
2-1/2″/DN65	75	140	46	32	PN10/16 150LB 10K
3″/DN80	95	150	46	32	PN10/16 150LB 10K
4″/DN100	105	170	52	32	PN10/16 150LB 10K
5″/DN125	122	180	56	32	PN10/16 150LB 10K
6″/DN150	134	205	56	32	PN10/16 150LB 10K
8″/DN200	168	235	60	36	PN10/16 150LB 10K
