OEM/ODM China Standard Stainless Steel Gate Valve - Knife Gate Valve – Hongbang Detail:

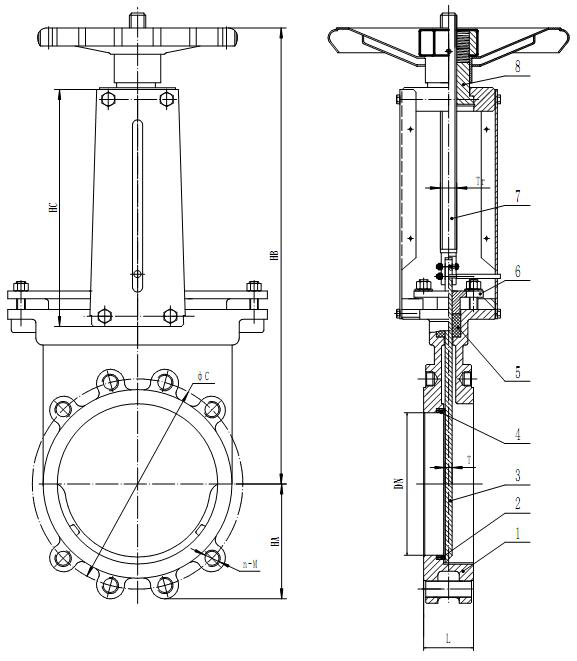

OK-202-HANDWHEEL
| NO. | PART | Choose | QTY | |
| 1 | BODY | GGG40 | 1 | |
| 2 | SEAT | EPDM/NBR | 1 | |
| 3 | GATE | SS304/SS316 | 1 | |
| 4 | RETAINER | SS304/SS316 | 2 | |
| 5 | O-RING | NBR | 5 | |
| 6 | GLAND | GGG40 | 3 | |
| 7 | STEM | SS304/SS316 | 1 | |
| 8 | LOCK NUT | BRASS | ||
| TEST PRESSURE | SHELL | SEAL | ||
| HYDROSTATIC | 1.5 MPa | 1.1 MPa | ||
| STANDARD | DESIGN CODE | EN 593 | ||
| INSPECTION & TEST | EN 12266 | |||
| END STANDARD | PN10 | |||
| FACE TO FACE | EN 558 | |||
GENERAL CHARACTERISTICS
Range : from DN 50 to DN 600.
Function ON/OFF or regulation.
Wafer threaded mounting ISO PN10.
Unidirectional tightness, direction indication thanks to the arrow on the body.
Small retention zone: the gate is guided in the body and has little clearance.
Gland assembly: packing and O-ring (same materials as seat joint) to assure the elasticity and decrease the operating torque. Small head loss. Possibilityto regulate thick fluids with the adaptation of a diaphragm ring.
STANDARDS
Manufacture according to the requirements of the European directive
2014/68/UE «Equipments under pressure» : modulate H.
On request : Product in accordance to european directive
“Potentialy explosive atmospheres” N° 94/9/EC : ATEX II 2 GD c and ATEX II 3 GD c.
Test procedures are established according to standards EN 12266-1, DIN 3230, BS 5154 and ISO 5208.
| Size | HA | HB | HC | HC | φ C | ||
| 2″/DN50 | 65 | 289 | 153 | 43 | PN10 | ||
| 2-1/2″/DN65 | 70 | 313 | 172 | 46 | PN10 | ||
| 3″/DN80 | 95 | 335 | 182 | 46 | PN10 | ||
| 4″/DN100 | 108 | 380 | 215 | 52 | PN10 | ||
| 5″/DN125 | 124 | 415 | 235 | 56 | PN10 | ||
| 6″/DN150 | 135 | 470 | 260 | 56 | PN10 | ||
| 8″/DN200 | 165 | 580 | 325 | 60 | PN10 | ||
