Professional Design Butterfly Valve - F4 Gate Valve – Hongbang Detail:

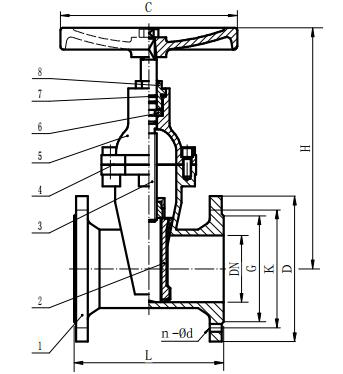

OK-203-HANDWHEEL

123

NO. PART Choose QTY
1 BODY GGG50 1
2 WEDGE GG50+EPDM 1
3 STEM SS416 1
4 GASKET EPDM 2
5 BONNET DI 5
6 LOCATING BRASS 3
7 O-RING EPDM 1
8 NUT BRASS
TEST PRESSURE   SHELL SEAL
HYDROSTATIC 2.4 MPa 1.76 MPa
STANDARD DESIGN CODE EN 593
INSPECTION & TEST EN 12266
END STANDARD PN10/16
FACE TO FACE EN 558

aa

GENERAL CHARACTERISTICS

Full and total bore
Stainless steel non rising stem
Clockwise to close
Ductile iron wedge EPDM coated
No retention area
Heel positioning
EPDM bonnet gasket
Screws bonnet protected
3 EPDM O ring on stem
Possibility to change stem gasket under pressure
Epoxy painting RAL 5015 color 250 μm thickness
Dust-coat on stem
ISO PN10/16.

Size H C D L φ C
2″/DN50 230 180 165 150 PN10/16
2-1/2″/DN65 265 180 185 170 PN10/16
3″/DN80 265 220 200 180 PN10/16
4″/DN100 310 240 220 190 PN10/16
5″/DN125 390 260 250 200 PN10/16
6″/DN150 390 260 285 210 PN10/16
8″/DN200 425 280 340 230 PN10/16
